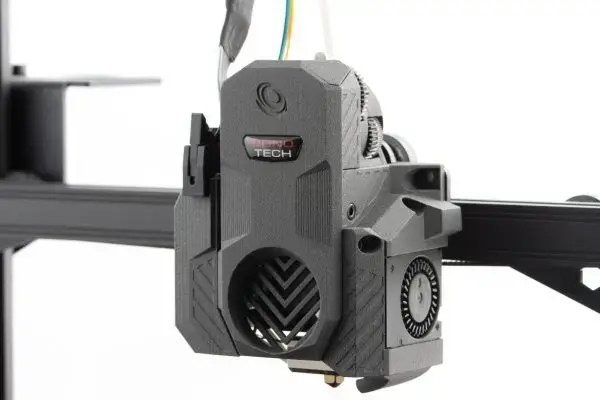

LGX Lite Arrow for Creality

Upgrade kit compatible with LGX Lite only to use on:
Creality CR-6 SE;
CR-6 Max;
CR-10 Smart.
The LGX Lite Arrow for Creality plastic parts are made of grey Polyamide (PA12) with no dyeing featuring a wax protective coating.

Extruder not included.
A LGX Lite extruder is required to use this kit.

LGX Lite Arrow for Creality Advantages
It converts the compatible printers from Bowden to direct extruder.
Extra load on strain gauge is limited to the LGX Lite itself.
Housing is light and insulated from the Extruder to allow for strain gauge levelling.
It is compatible with all stock hotends and cooling fans.
Housing is easy to remove for maintenance and service of the hotend and extruder.
Z-position of the fan shroud may be adjusted.
LGX Lite Arrow for Creality Features
Weight: 65g.
E-steps : 562 @ 16 microsteps.
Klipper’s rotation_distance : 5.7.
Stepper motor current : 0.45 to 0.65A max.
Max operating temperature : 90°C.
It may be upgraded with Slice Engineering hotends:

Copperhead Screw Mount;
Mosquito;
Mosquito Magnum;
LGX Lite Arrow for Creality Includes
1x LGX Lite extruder mounting set
1x PA12 extruder mount
1x PA12 hotend mount
4x M3x6 button head screw
2x M3x10 button head screw
2x M3x8 button head screw
1x M3x30 screw
1x M3 square nut
1x Capricorn cutting fixture
1x 70mm Capricorn tube
1x LGX Lite Arrow housing set
1x PA12 front housing
1x PA12 left wing
1x PA12 right wing
1x PA12 top lid
1x PA12 fan shroud
1x PA12 (breakout board/cables) cover
2x M3x8 button head screw
1x M3x16 screw
2x M3x20 MC6S screw
3x M3 square nut
1x Powered by Bondtech sticker
